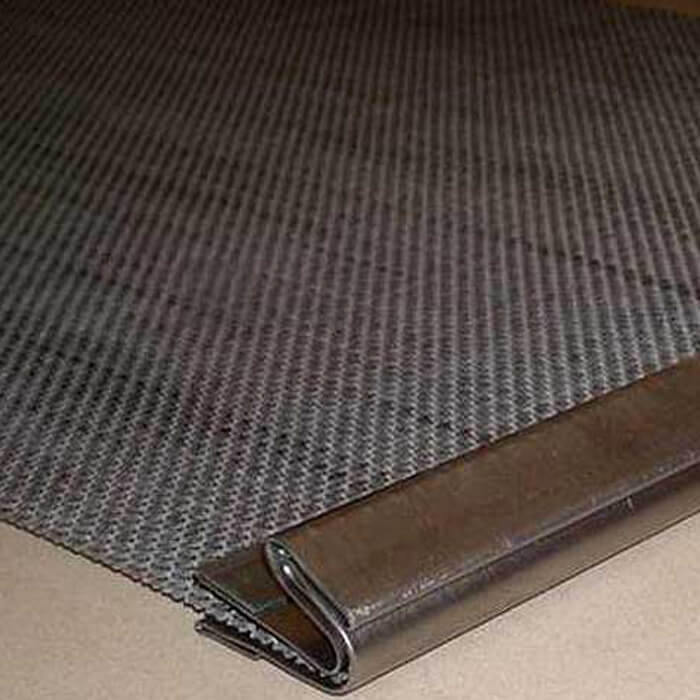

Lock Crimped Vibrating Screen Mesh

Lock Crimped Vibrating Screen Mesh

Lock Crimped Vibrating Screen Mesh Material: according to different applications of coal,gravel,gabbro aggregate,slag,stone choose, crusher screen mesh material different.

  • Best Quality
  • High efficiency
  • Customize
Inquiryt

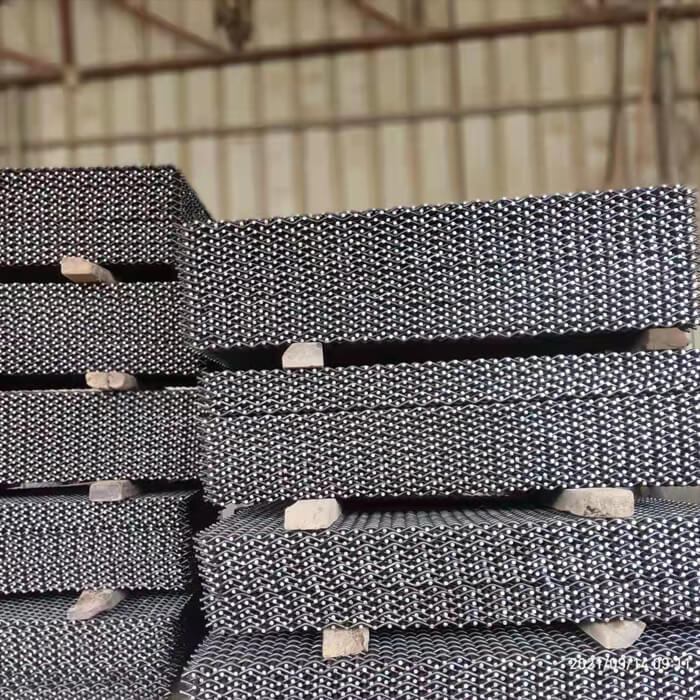

Lock Crimped Vibrating Screen Mesh type also is pre-crimped. he warp wire and weft wire are both crimped, can assure the spacing of the wires. This structure ensures that there is no wire movement. So the wires will be lock good at the intersections.


The Material Parameter Is As Following:


Crusher Screen Mesh Weaving type:







High Carbon steel Parameter:



NO
Grade Chemical Composition Strength Property
C Si Mn σb (MPa)
1 30Mn 0.27-0.34% 0.17-0.37% 0.70-1.00% 540
2 45 0.42-0.50% 0.17-0.37% 0.50-0.80% 600
3 50 0.47-0.55% 0.17-0.37% 0.50-0.80% 630
4 55 0.52-0.60% 0.17-0.37% 0.50-0.80% 645
5 60 0.57-0.65% 0.17-0.37% 0.50-0.80% 675
6 65 0.62-0.70% 0.17-0.37% 0.50-0.80% 695
7 70 0.67-0.75% 0.17-0.37% 0.50-0.80% 715
8 65Mn 0.62-0.70% 0.17-0.37% 0.90-1.20% 980
9 72A 0.69-0.76% 0.15-0.35% 0.30-0.60% 1570


Stainless Steel Parameter:


NO Grade Chemical Composition Strength Property
C Ni Mn Cr σb (MPa)
1 202 ≤0.15% 4.0-6.0% ≤7.5% 17.0-19.0 520
2 304 ≤0.08% 8.0-10.5% ≤2.0% 18.0-20.0 520
3 321 ≤0.08% 9.0-12.0% ≤2.0% 17.0-19.0 520
4 316 ≤0.08% 10.0-14.0% ≤2.0% 16.0-18.5 520


Crusher Screen Mesh Specifications:


  A B C D Feed Size
Heavy Medium Heavy Medium Light
Apert. Wire Oa% Wire Oa% Wire Oa% Wire Oa% 1 2 3
100 20 69 16 74 12.5 79 11.2 81 180 215 250
90 16 72 12.5 77 11.2 79 10.0 81 150 190 230
76 16 68 12.5 74 11.2 76 10.0 78 150 190 230
70 12.5 72 11.2 74 10.0 77 9.0 79 125 165 200
65 12.5 70 11.2 73 10.0 75 10.0 75 125 165 200
56 12.5 67 10.0 72 9.0 74 8.0 77 125 165 200
50 12.5 64 10.0 69 9.0 72 8.0 74 125 165 200
48 11.2 66 9.0 71 8.0 73 7.0 76 115 140 180
44 11.2 64 9.0 69 8.0 72 7.1 74 115 140 180
42 11.2 62 9.0 68 8.0 71 6.0 77 115 140 180
29 10.0 63 8.0 68 7.1 71 6.0 75 100 125 150
36 10.0 61 8.0 67 6.0 73 5.6 75 100 125 150
32 10.0 58 8.0 64 6.0 71 5.0 75 100 125 150
28 9.0 57 7.1 64 6.0 68 5.0 72 90 115 130
25 8.0 57 6.0 65 5.6 67 5.0 69 90 115 130
22 7.5 56 5.6 64 5.0 66 4.5 69 75 95 115
19 7.1 53 5.6 60 4.5 65 4.0 68 75 95 115
16 6.0 53 5.0 58 4.5 61 3.6 67 65 80 95
14 4.0 54 4.5 57 4.0 60 3.15 67 65 80 95
12 5.0 50 4.5 53 3.6 60 2.8 66 50 65 75
11 4.5 50 4.0 54 3.1 60 2.8 64 50 65 75
10 4.0 51 3.6 54 3.1 58 2.5 64 38 50 65
8 3.6 48 3.15 51 2.8 55 2.0 64 38 50 65
6 3.15 43 2.8 46 2.5 50 1.8 59 25 38 50
5 2.5 44 2 51 1.6 57 1.2 65 19 25 38
3 2 36 1.8 39 1.4 46 1.0 56 16 19 25
2 1.25 38 1 44 0.9 48 0.71 54 12 16 19
1.6 1 38 0.9 41 0.8 44     10 12 16
1.4 0.9 37 0.8 40 0.71 44     8 10 12
1.25 0.8 37 0.71 41         6 8 10


Applicationļ¼šthe crusher screen mesh use for coal, gravel, gabbro aggregate, slag, stone sieve.


Crusher screen mesh Material:
