Best vibrating screens are commonly used screening tools in industrial production. People who are accustomed to the working principle of these vibratory screens are well versed that whether it is linear, circular, auto centering vibrating screens or heavy vibrating screens, all these belong to the family of mesh screening equipment.

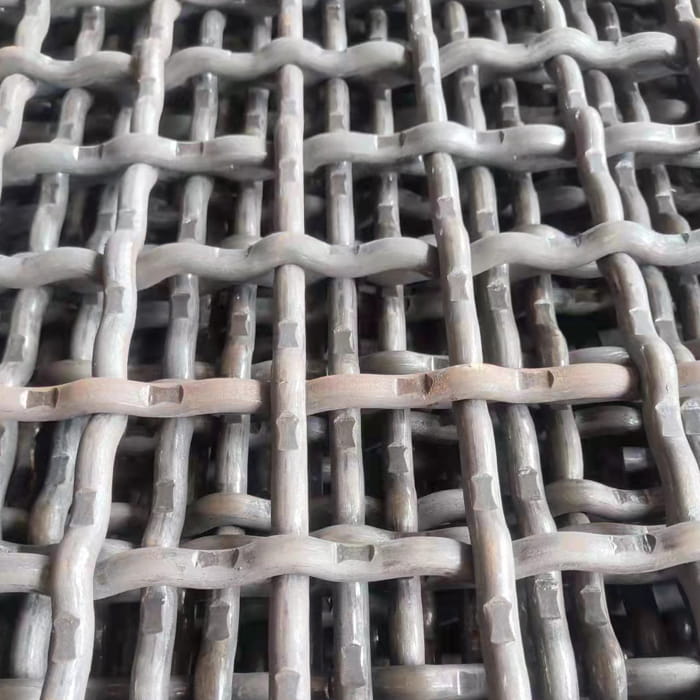

Metal Crimped Wire Mesh is made by galvanized steel wire ,high carbon steel, 65Mn wires, galvanized steel wire , stainless steel wire, copper steel wires and other metal wires.
Weaving Patterns: weaving after crimping.

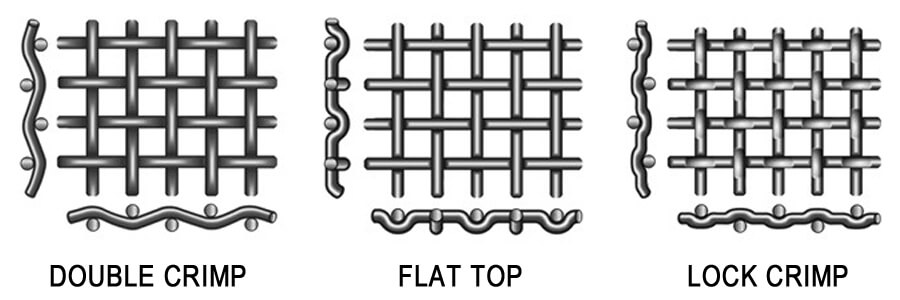

Processing method: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
A | B | C | D | Feed Size | |||||||
Heavy | Medium Heavy | Medium | Light | ||||||||
Apert. | Wire | Oa% | Wire | Oa% | Wire | Oa% | Wire | Oa% | 1 | 2 | 3 |
100 | 20 | 69 | 16 | 74 | 12.5 | 79 | 11.2 | 81 | 180 | 215 | 250 |
90 | 16 | 72 | 12.5 | 77 | 11.2 | 79 | 10.0 | 81 | 150 | 190 | 230 |
76 | 16 | 68 | 12.5 | 74 | 11.2 | 76 | 10.0 | 78 | 150 | 190 | 230 |
70 | 12.5 | 72 | 11.2 | 74 | 10.0 | 77 | 9.0 | 79 | 125 | 165 | 200 |
65 | 12.5 | 70 | 11.2 | 73 | 10.0 | 75 | 10.0 | 75 | 125 | 165 | 200 |
56 | 12.5 | 67 | 10.0 | 72 | 9.0 | 74 | 8.0 | 77 | 125 | 165 | 200 |
50 | 12.5 | 64 | 10.0 | 69 | 9.0 | 72 | 8.0 | 74 | 125 | 165 | 200 |
48 | 11.2 | 66 | 9.0 | 71 | 8.0 | 73 | 7.0 | 76 | 115 | 140 | 180 |
44 | 11.2 | 64 | 9.0 | 69 | 8.0 | 72 | 7.1 | 74 | 115 | 140 | 180 |
42 | 11.2 | 62 | 9.0 | 68 | 8.0 | 71 | 6.0 | 77 | 115 | 140 | 180 |
29 | 10.0 | 63 | 8.0 | 68 | 7.1 | 71 | 6.0 | 75 | 100 | 125 | 150 |
36 | 10.0 | 61 | 8.0 | 67 | 6.0 | 73 | 5.6 | 75 | 100 | 125 | 150 |
32 | 10.0 | 58 | 8.0 | 64 | 6.0 | 71 | 5.0 | 75 | 100 | 125 | 150 |
28 | 9.0 | 57 | 7.1 | 64 | 6.0 | 68 | 5.0 | 72 | 90 | 115 | 130 |
25 | 8.0 | 57 | 6.0 | 65 | 5.6 | 67 | 5.0 | 69 | 90 | 115 | 130 |
22 | 7.5 | 56 | 5.6 | 64 | 5.0 | 66 | 4.5 | 69 | 75 | 95 | 115 |
19 | 7.1 | 53 | 5.6 | 60 | 4.5 | 65 | 4.0 | 68 | 75 | 95 | 115 |
16 | 6.0 | 53 | 5.0 | 58 | 4.5 | 61 | 3.6 | 67 | 65 | 80 | 95 |
14 | 4.0 | 54 | 4.5 | 57 | 4.0 | 60 | 3.15 | 67 | 65 | 80 | 95 |
12 | 5.0 | 50 | 4.5 | 53 | 3.6 | 60 | 2.8 | 66 | 50 | 65 | 75 |
11 | 4.5 | 50 | 4.0 | 54 | 3.1 | 60 | 2.8 | 64 | 50 | 65 | 75 |
10 | 4.0 | 51 | 3.6 | 54 | 3.1 | 58 | 2.5 | 64 | 38 | 50 | 65 |
8 | 3.6 | 48 | 3.15 | 51 | 2.8 | 55 | 2.0 | 64 | 38 | 50 | 65 |
6 | 3.15 | 43 | 2.8 | 46 | 2.5 | 50 | 1.8 | 59 | 25 | 38 | 50 |
5 | 2.5 | 44 | 2 | 51 | 1.6 | 57 | 1.2 | 65 | 19 | 25 | 38 |
3 | 2 | 36 | 1.8 | 39 | 1.4 | 46 | 1.0 | 56 | 16 | 19 | 25 |
2 | 1.25 | 38 | 1 | 44 | 0.9 | 48 | 0.71 | 54 | 12 | 16 | 19 |
1.6 | 1 | 38 | 0.9 | 41 | 0.8 | 44 | 10 | 12 | 16 | ||
1.4 | 0.9 | 37 | 0.8 | 40 | 0.71 | 44 | 8 | 10 | 12 | ||
1.25 | 0.8 | 37 | 0.71 | 41 | 6 | 8 | 10 |
