Sintered Metal Filter Centering Ring

Sintered Metal Filter Centering Ring

These Sintered Metal Filter Centering Ring with sintered metal provide maximum filtered protection for you vacuum system. They are useful in many situations in which a vacuum system or instrument needs to be protected from contamination by particulate generated from outside the system or from within. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble.

  • Best Quality
  • High efficiency
  • Customize
Inquiryt

Description

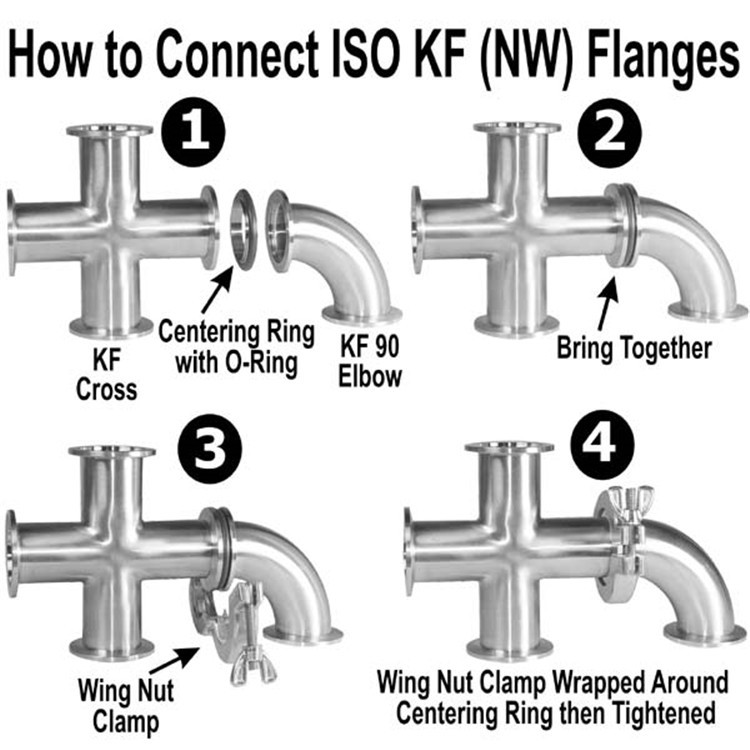

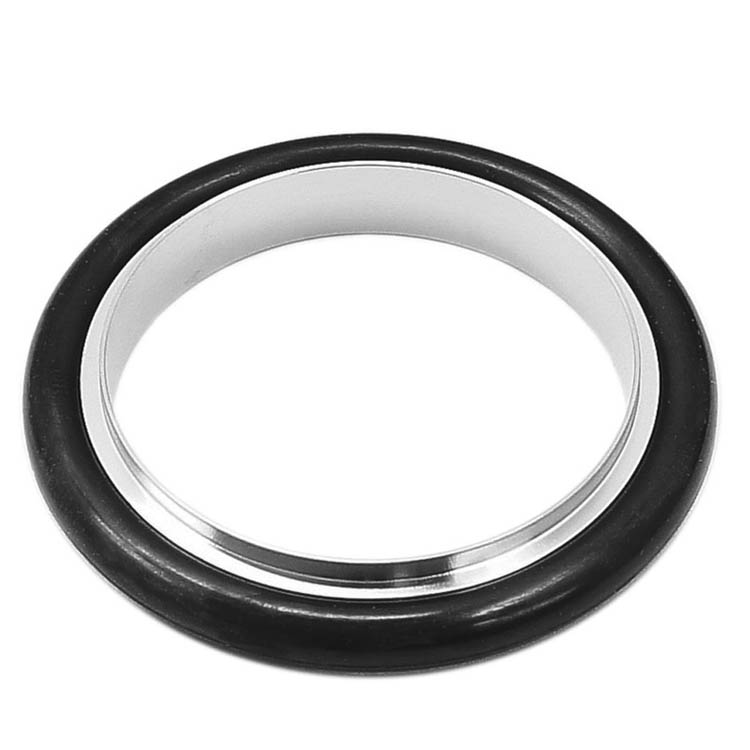

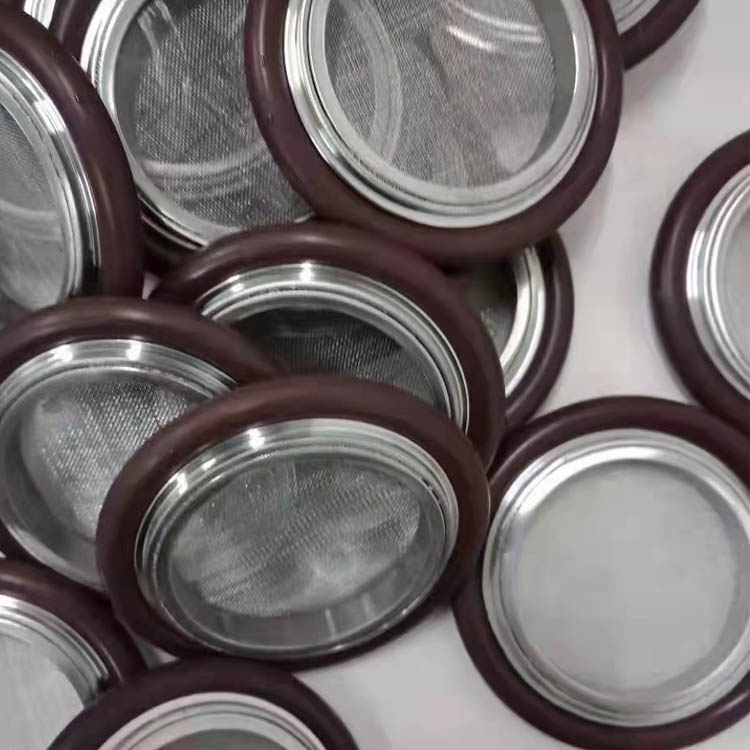

These Sintered Metal Filter Centering Ring with sintered metal provide maximum filtered protection for you vacuum system. They are useful in many situations in which a vacuum system or instrument needs to be protected from contamination by particulate generated from outside the system or from within. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The Filter-Max Centering Ring with Sintered Metal Filter DN25 ISO-KF25 centering ring contains a rubber elastomer o-ring and the screen has a mesh pore size of 20 microns with a 98% retainment of 1 micron particles.



The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. Centering Ring with Sintered Metal Filter DN25 ISO-KF25 are made of corrosive resistant stainless steel 1.4404, comes with Viton® O-Ring. Viton® is a registered trademark of DuPont Performance Elastomers. Viton® is well known for its excellent resistance to heat (400°F/200°C) and to aggressive fuels and chemicals.







Filter-Max Centering Ring with Sintered Metal Filter DN25 ISO-KF25, Provide Extreme Filtration For Your Vacuum System.

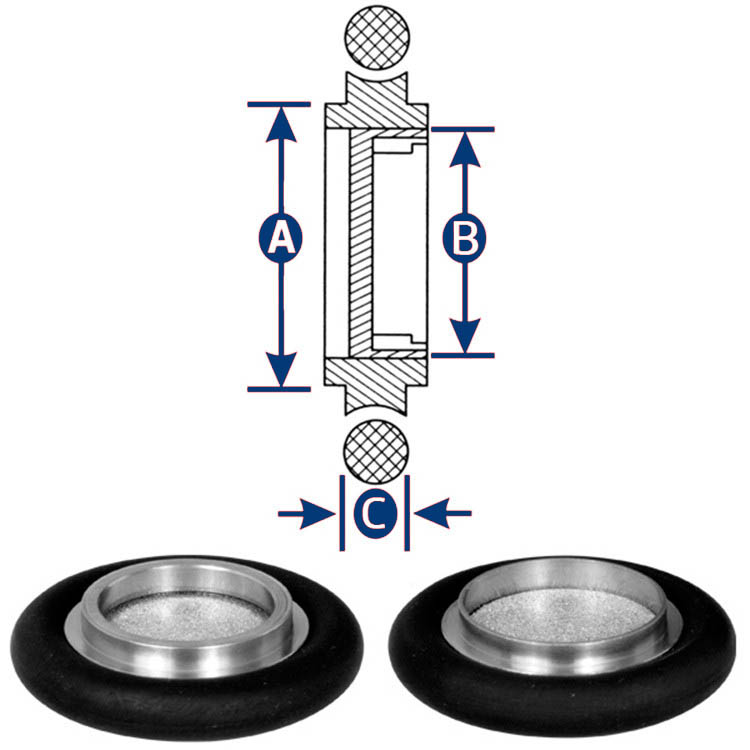

Dimensions:

A= 1.02 inch (26 mm)
B= 0.91 inch (23 mm)
C= 0.15 inch (3.9 mm)
Mesh Pore Size= 20 microns

Complete series of filter elements

A complete series of filter elements is available for a host of different applications. Our AHS hydraulic filter elements reduce solid contamination to the required contamination class, prevent ingress of extraneous dirt, and maintain the properties of the pressure fluid over the long term.

Toughest test procedures—outstanding ratings

Our AHS hydraulic filter elements are tested for compliance with all common standards in the hydraulics industry. Why? Because we want objectively documented, reproducible results for our customers. We therefore put ourselves to the test against internationally recognized standards such as ISO 16889. Our filters achieve outstanding ratings for dirt holding capacity, beta-ratio stability, and retention rates.

Innovative solutions partner with systems expertise

AHS industrial filtration has been producing high-quality industrial filter element for fluid technology, construction machinery hydraulic system, and process technology for many years. As an innovative, reliable development partner and supplier for the leading manufacturers of hydraulic systems and equipment all over the world, AHS industrial filtration is your expert partner in all areas of filtration and separation.
