5-layer Sintered wire mesh filter element is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together.

  • Best Quality
  • High efficiency
  • Customize
Inquiryt

Description

Sintered wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh (5 layers sintered filter mesh structure drawing as right picture).

The follow picture shows a sintered stainless steel wire mesh panel made form five different layers of stainless steel wire mesh combined and sintered together through vacuum sintering, compressing, and rolling, forming a porous sinter mesh.









The cross section structure of sinter wire mesh

Specifications

Material: Standard material SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L), Alloy Steel Hastelloy, Monel, and Inconel.
Standard Size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 300 × 1500 mm.
Fabrication: easily formed, sheared, welded and punched.
What types of sinter mesh filters we are supply:
standard combination of 5-layer sintered wire mesh.
sintered together by many layers of plain-woven square mesh.
sintered together by many layers of dutch-woven square mesh.
sintered by perforated plate and multi-layer stainless steel wire mesh.

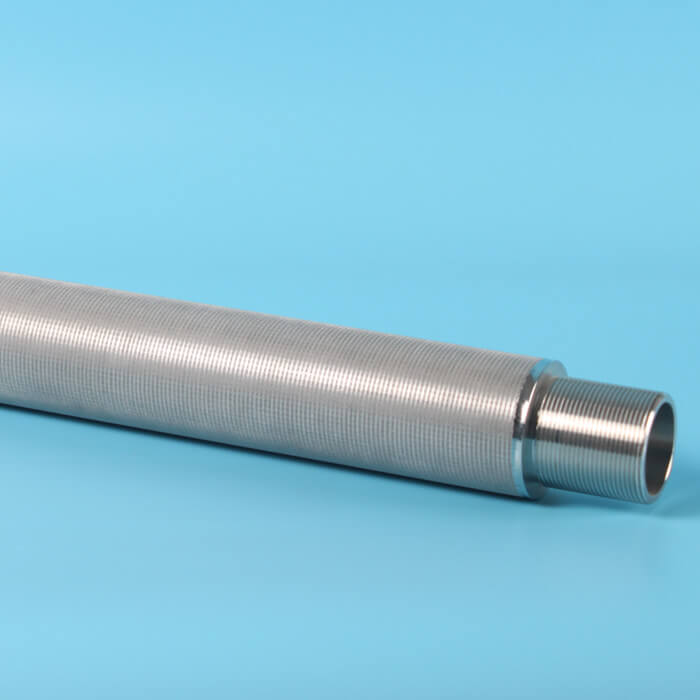

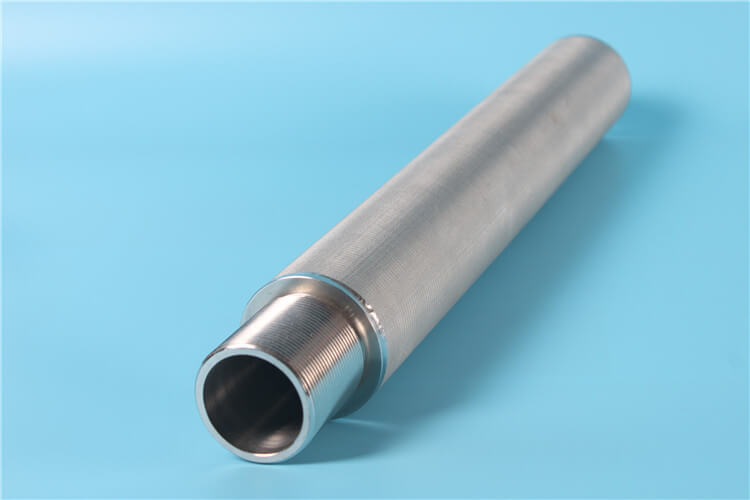

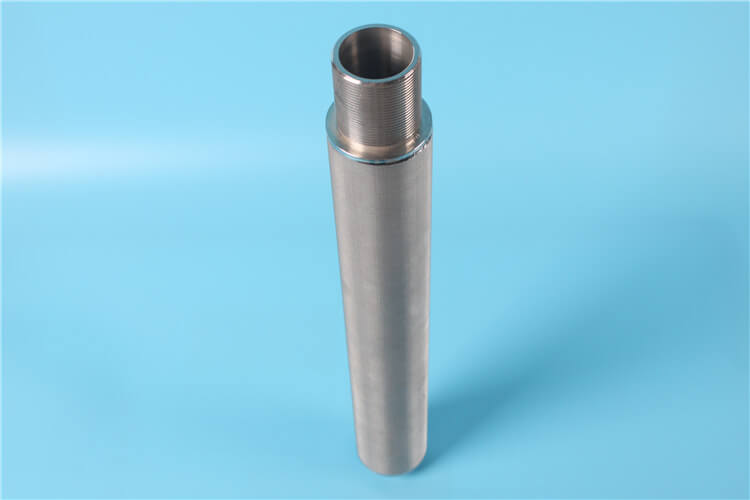

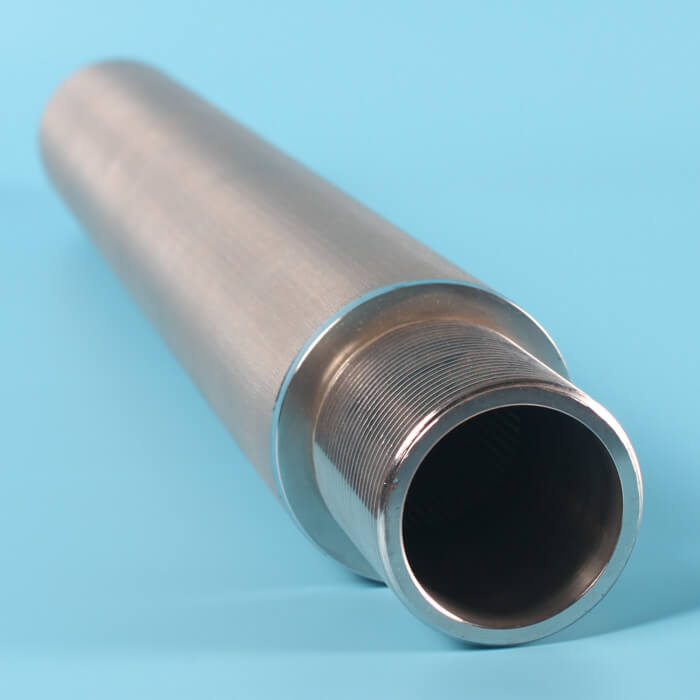

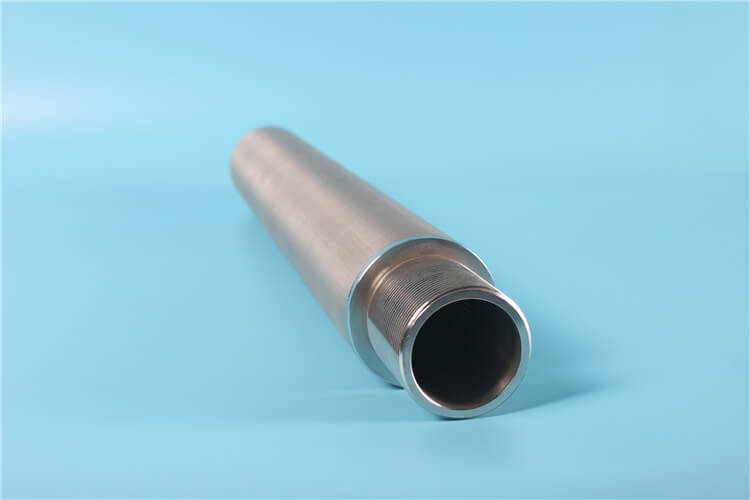

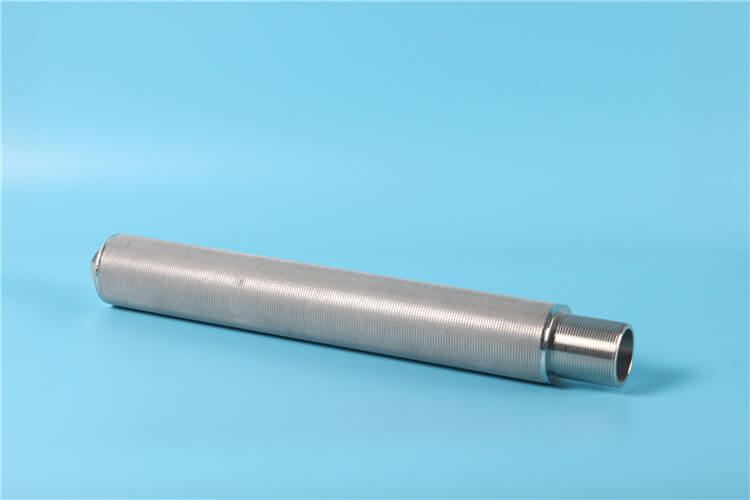

Our sintered mesh panels may be formed into filter elements such as filter discs, cartridges, cones, cylinders, and tube.


Sintered wire mesh has many advantages compare with other filter mesh, such as:
Two sintered woven wire filer plates and a perforated metal sintered tube on the white background

High strength and durability since high temperature sintering.
Anti-corrosion, and heat resistance up to 480 °C.
Steady filter rating from the 1micron to 100 micron.
Filter mesh not easy to deform because of two protective layers.
Can used for uniform filtration in high pressure or high viscosity environment.
Suits for cutting, bending, punching, stretching, and welding.
Sinter wire mesh filters are usually used for purification and filtration of liquid and gas, separation and recovery of solid particle, transpiration cooling under extremity high temperature, control air flow distribution, enhancement of heat and mass transfer, noise reduction, current limitation, and wildly used in aerospace, petrochemical industry, pharmaceutical industry, environmental protection industry.


Specifications of Sintered Wire Mesh
Model Nominal Filter Rating (um) Structure Protective Layer + Control Layer + Dispersion Layer + Reinforce Layer + Reinforce Layer Thickness
(mm)
Air Permeability (L/min/cm2) Bubble Pressure (mm H2O) Weight (kg/m2) Porosity (%)
AHS-5-1 1 100 + 400 × 2800 + 100 + 12 × 64 + 64 × 12 1.7 1.81 360-600 5-layer sintered wire mesh(8.4) 6-layer sintered wire mesh (14.4) 40%
AHS-5-2 2 100 + 325 × 2300 + 100 + 12 × 64 + 64 × 12 1.7 2.35 300-590
AHS-5-5 5 100 + 200 × 1400 + 100 + 12 × 64 + 64 × 12 1.7 2.42 260-550
AHS-5-10 10 100 + 165 × 1400 + 100 + 12 × 64 + 64 × 12 1.7 3.00 220-500
AHS-5-15 15 100 + 165 × 1200 + 100 + 12 × 64 + 64 × 12 1.7 3.41 200-480
AHS-5-20 20 100 + 165 × 800 + 100 + 12 × 64 + 64 × 12 1.7 4.50 170-450
AHS-5-25 25 100 + 165 × 600 + 100 + 12 × 64 + 64 × 12 1.7 6.12 150-410
AHS-5-30 30 100 + 450 + 100 + 12 × 64 + 64 × 12 1.7 6.7 120-390
AHS-5-40 40 100 + 325 + 100 + 12 × 64 + 64 × 12 1.7 6.86 100-350
AHS-5-50 50 100 + 250 + 100 + 12 × 64 + 64 × 12 1.7 8.41 90-300
AHS-5-75 75 100 + 200 + 100 + 12 × 64 + 64 × 12 1.7 8.7 80-250
AHS-5-100 100 100 + 150 + 100 + 12 × 64 + 64 × 12 1.7 9.1 70-190
AHS-5-150 150 50 + 100 + 50 + 30 × 30 + 100 × 50 2.0 25.00 50-150
AHS-5-200 200 40 + 80 + 40 + 20 × 40 + 80 × 40 2.0 26.00 50-150


Note: The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5 mm. And it has the higher anti-pressure ability.

Complete series of filter elements

A complete series of filter elements is available for a host of different applications. Our AHS hydraulic filter elements reduce solid contamination to the required contamination class, prevent ingress of extraneous dirt, and maintain the properties of the pressure fluid over the long term.

Toughest test procedures—outstanding ratings

Our AHS hydraulic filter elements are tested for compliance with all common standards in the hydraulics industry. Why? Because we want objectively documented, reproducible results for our customers. We therefore put ourselves to the test against internationally recognized standards such as ISO 16889. Our filters achieve outstanding ratings for dirt holding capacity, beta-ratio stability, and retention rates.

Innovative solutions partner with systems expertise

AHS industrial filtration has been producing high-quality industrial filter element for fluid technology, construction machinery hydraulic system, and process technology for many years. As an innovative, reliable development partner and supplier for the leading manufacturers of hydraulic systems and equipment all over the world, AHS industrial filtration is your expert partner in all areas of filtration and separation.
