Plate Demister

Plate Demister

Plate demister refers to the demister pads made of metal or plastic plates. The plate demister pads can supply large contacting area for high filtering and separating efficiency in chemical, petroleum, pharmacy and other fields.

  • Best Quality
  • High efficiency
  • Customize
Inquiryt

Plate Demister

Plate demister refers to the demister pads made of metal or plastic plates. The plate demister pads can supply large contacting area for high filtering and separating efficiency in chemical, petroleum, pharmacy and other fields. The plate demister can be made into different types for different applications, here are two main types of plate demister, just browse them and find the perfect one you need. If you need other types of demisters, just tell us and we will customize for you.

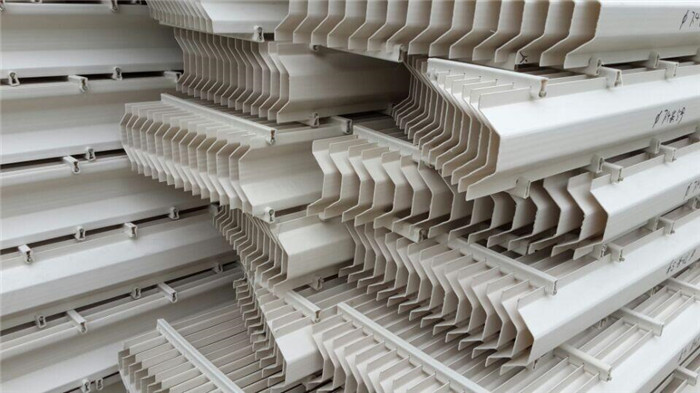

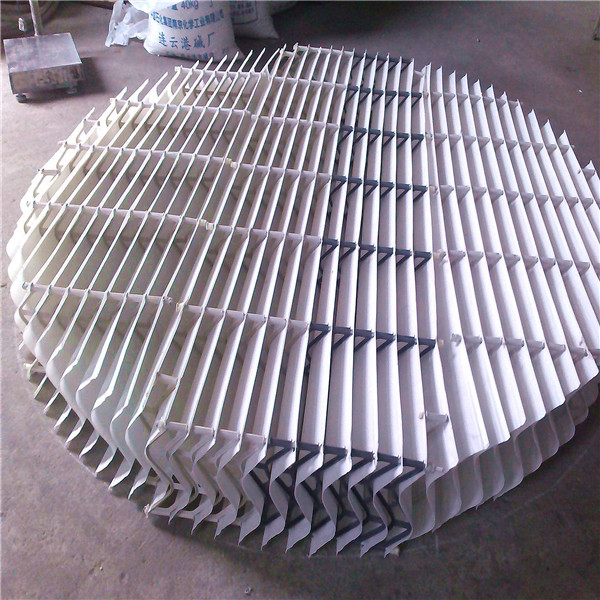

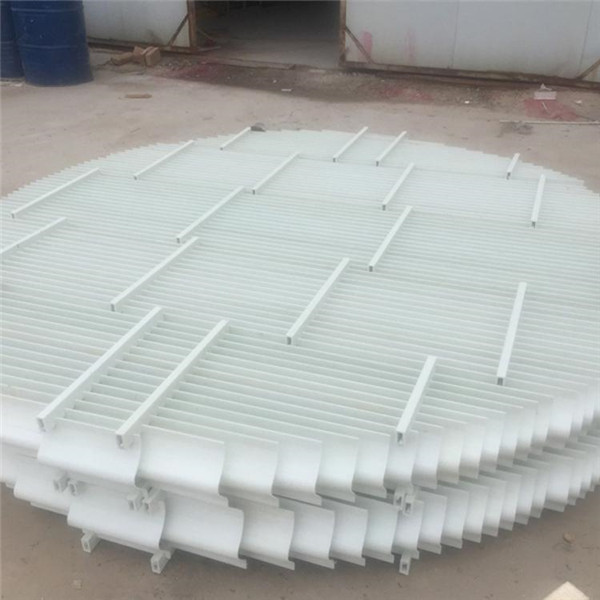

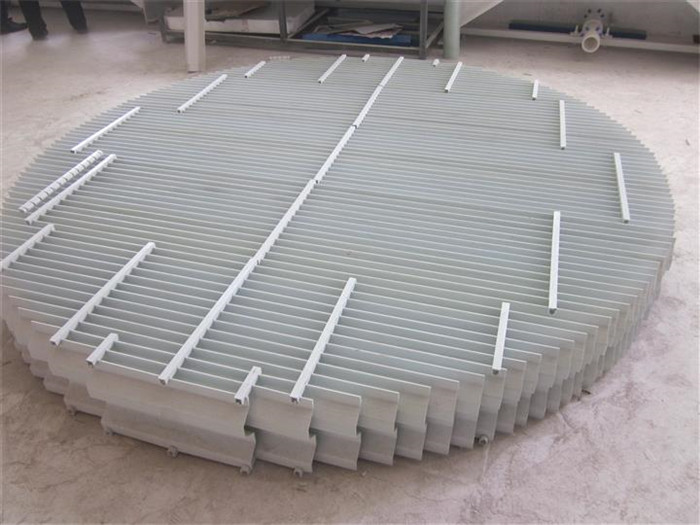

Vane Type Plate Demister

Vane type demister pad is made of several zig-zag chevron blades with or without hooks. The blades are placed regularly and fastened together to form a whole filter device. The vane demister pad can be made of stainless steel and various plastic materials. The stainless steel vane demister is corrosion and rust resistance to be used in the corrosive applications. The plastic vane demister pad is temperature resistance and lightweight, it is economical and high filtering efficiency.
The structure of plate demister pad is various. It can be smooth or hook blade. The smooth blade can supply non-fouling characters and the hook blade can supply greater filtering and separating efficiency. Additional, the blade can be divided into stream line and broken line with two or three passes.



Specifications of vane demister pad
  1. Plate spacing: 1/2", 3/4", 3/8", 1", 1-1/2", 2" and others.
  2. Blade height: 5" or 8".
  3. Profile depth: 1/2" - 3/8".
  4. Blade thickness: 0.46 mm.


Demister Pad Type:

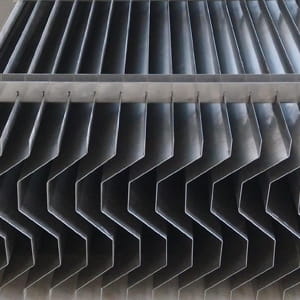

 AHS-TLS1: Stainless steel vane type plate demister pad

AHS-TLS1: Stainless steel vane type plate demister pad     AHS-TLS2: Plastic vane type plate demister pad.

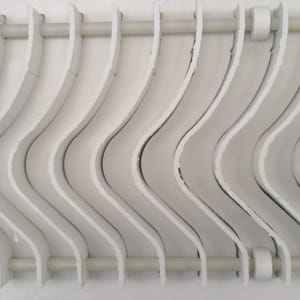

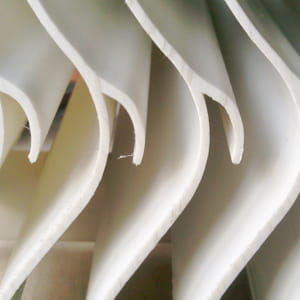

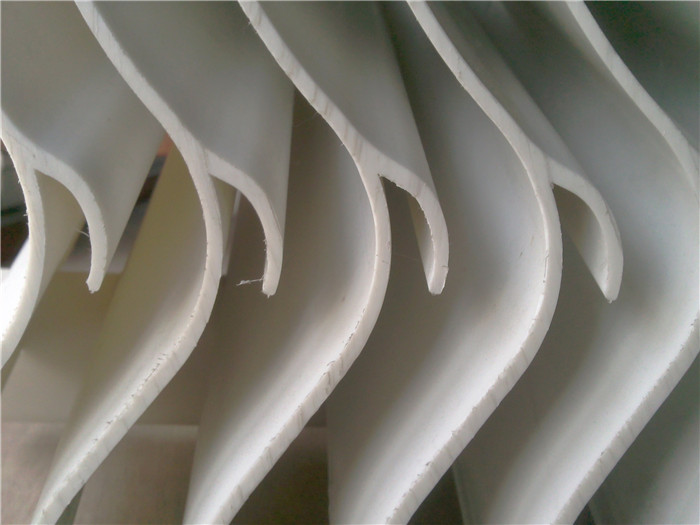

AHS-TLS3: Hook blade vane demister pad.                   AHS-TLS4: Smooth blade vane demister pad.

AHS-TLS3: Hook blade vane demister pad.                          AHS-TLS4: Smooth blade vane demister pad.



Structured Packing

Structured packing is a type of packing used for gas and liquid filtration applications. Except for the wire gauze structure packing, the structured packing can also be made of various materials of perforated plates. Perforated plate structured packing can be made of stainless steel, ceramic and plastic materials. And the perforated plate structured packing can be perforated into round holes or protruded holes. Except for the material and surface of the plate, the angle of the structured packing can be 30° or 45°, which is named as X type and Y type. Structured packing is widely used in the packing towers for gas and liquid foam separating, filtering and purifying.





Complete series of filter elements

A complete series of filter elements is available for a host of different applications. Our AHS hydraulic filter elements reduce solid contamination to the required contamination class, prevent ingress of extraneous dirt, and maintain the properties of the pressure fluid over the long term.

Toughest test procedures—outstanding ratings

Our AHS hydraulic filter elements are tested for compliance with all common standards in the hydraulics industry. Why? Because we want objectively documented, reproducible results for our customers. We therefore put ourselves to the test against internationally recognized standards such as ISO 16889. Our filters achieve outstanding ratings for dirt holding capacity, beta-ratio stability, and retention rates.

Innovative solutions partner with systems expertise

AHS industrial filtration has been producing high-quality industrial filter element for fluid technology, construction machinery hydraulic system, and process technology for many years. As an innovative, reliable development partner and supplier for the leading manufacturers of hydraulic systems and equipment all over the world, AHS industrial filtration is your expert partner in all areas of filtration and separation.
