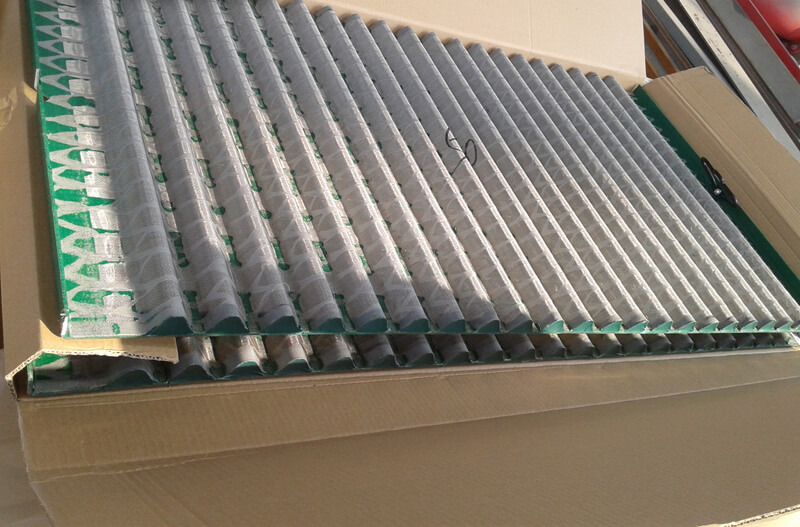

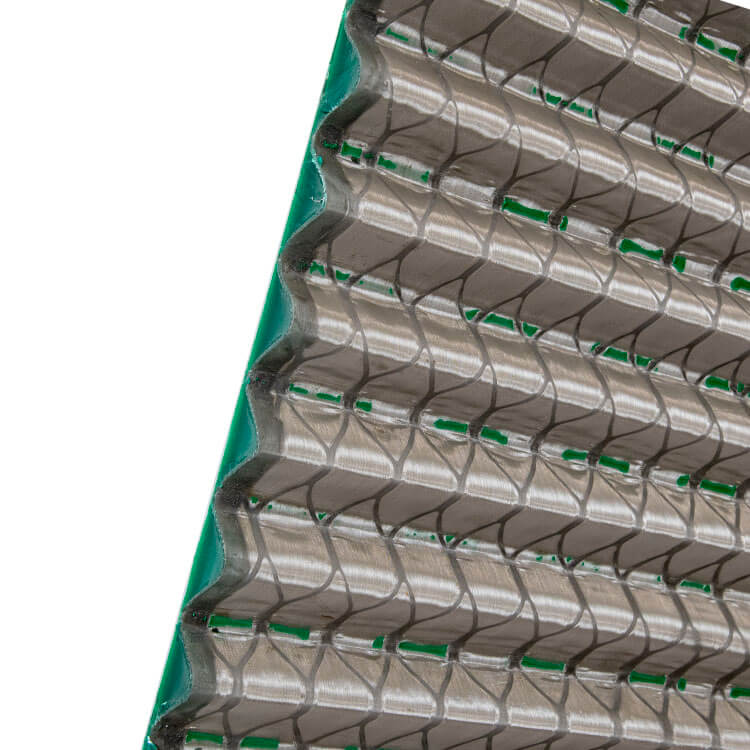

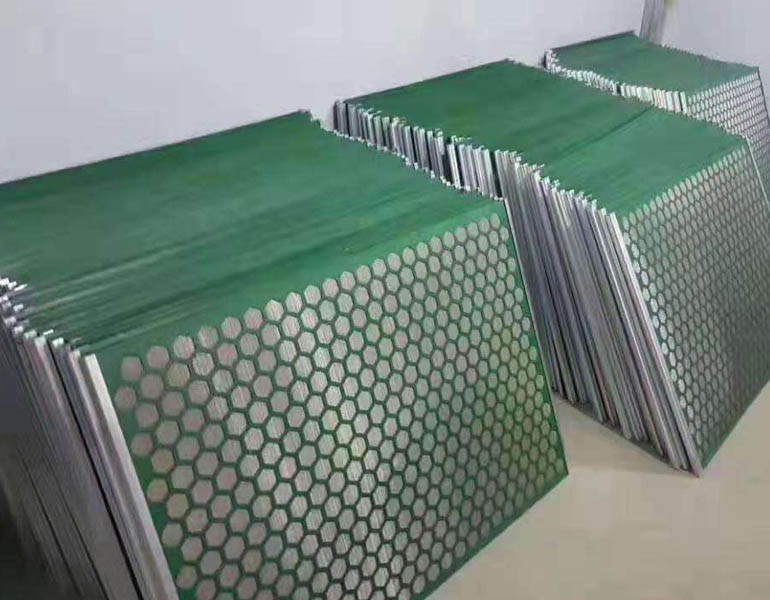

Shale Shaker Screen

Shale Shaker Screen

Products information: hale shaker screen also named oil vibration sieve mesh. It is the wearing parts of shale shaker device.

  • Best Quality
  • High efficiency
  • Customize



Products information:
 hale shaker screen also named oil vibration sieve mesh. It is the wearing parts of shale shaker device.
Material: Stainless steel wire mesh, plastic flat mesh.
Character: Resistant to abrasion, erosion and temperature.
Feature: Low cost, easy disassembly, high rate of catheters, sediment (residue) effect, long life. It is the ideal accessory of shaker,The effective area is 125% to 150% of flat screens. Without changing the construction of shakers, the using of the frame screens can improve the quality of drilling fluid and increase the production.
Specification: The thickness of plate from 0.3mm to 8mm, SWO from 3mm to 80mm, LWO from 3mm to 200mm, Max width 2.0mm.
Application: Vibration sieve used for the oil industry. Be widely used as filter wire mesh of mining, coal, petroleum, fertilizer, food and other environmental protection industry.

Shale Shaker Screen Dimension Parameters:

Screen Item Mesh Range Dimension (Length × Width) Approx Weight (Kg)
AHSSS-1 16–325 585 × 1170 mm 12
AHSSS-2 16–325 635 × 1253 mm 13.5
AHSSS-3 16–325 913 × 650 mm 12.5
AHSSS-4 16–325 720 × 1220 mm 17
AHSSS-5 16–325 712 × 1181 mm 17

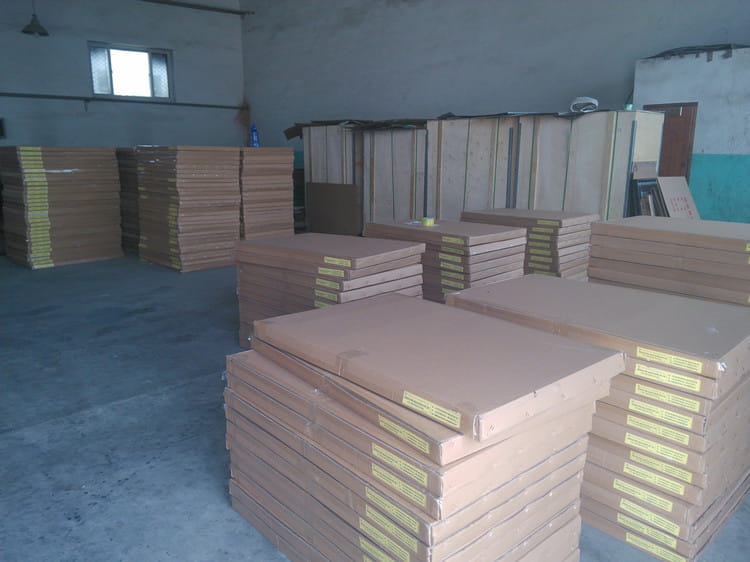

Large Stock


Complete series of filter elements

A complete series of filter elements is available for a host of different applications. Our AHS hydraulic filter elements reduce solid contamination to the required contamination class, prevent ingress of extraneous dirt, and maintain the properties of the pressure fluid over the long term.

Toughest test procedures—outstanding ratings

Our AHS hydraulic filter elements are tested for compliance with all common standards in the hydraulics industry. Why? Because we want objectively documented, reproducible results for our customers. We therefore put ourselves to the test against internationally recognized standards such as ISO 16889. Our filters achieve outstanding ratings for dirt holding capacity, beta-ratio stability, and retention rates.

Innovative solutions partner with systems expertise

AHS industrial filtration has been producing high-quality industrial filter element for fluid technology, construction machinery hydraulic system, and process technology for many years. As an innovative, reliable development partner and supplier for the leading manufacturers of hydraulic systems and equipment all over the world, AHS industrial filtration is your expert partner in all areas of filtration and separation.
